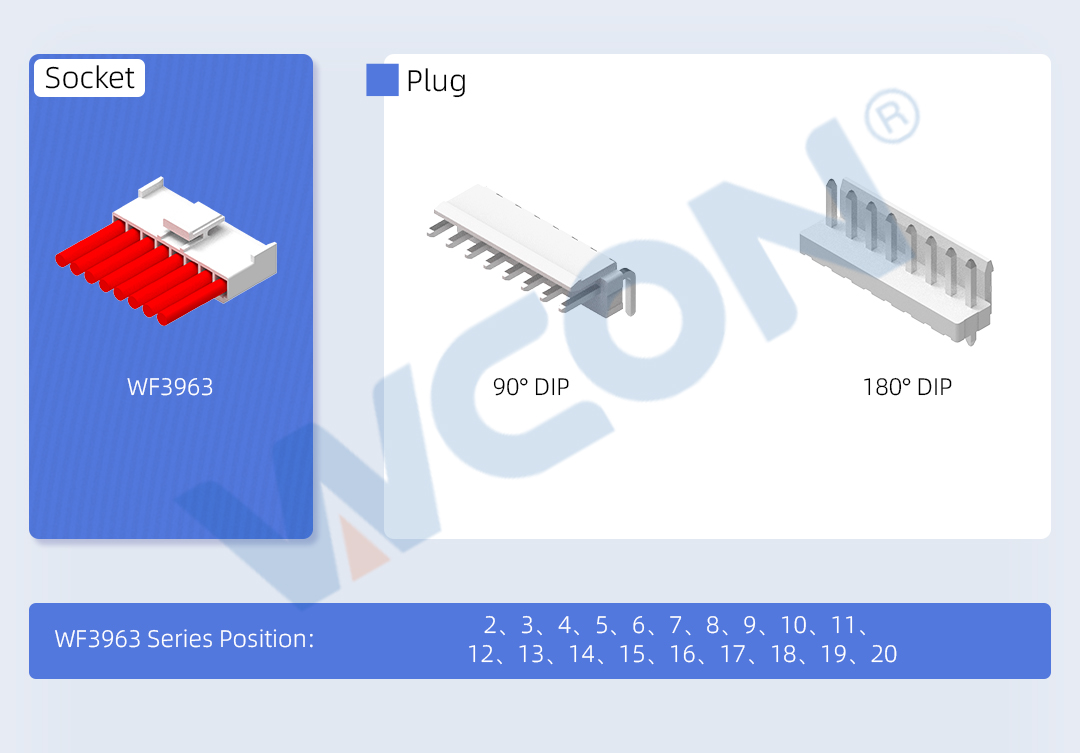

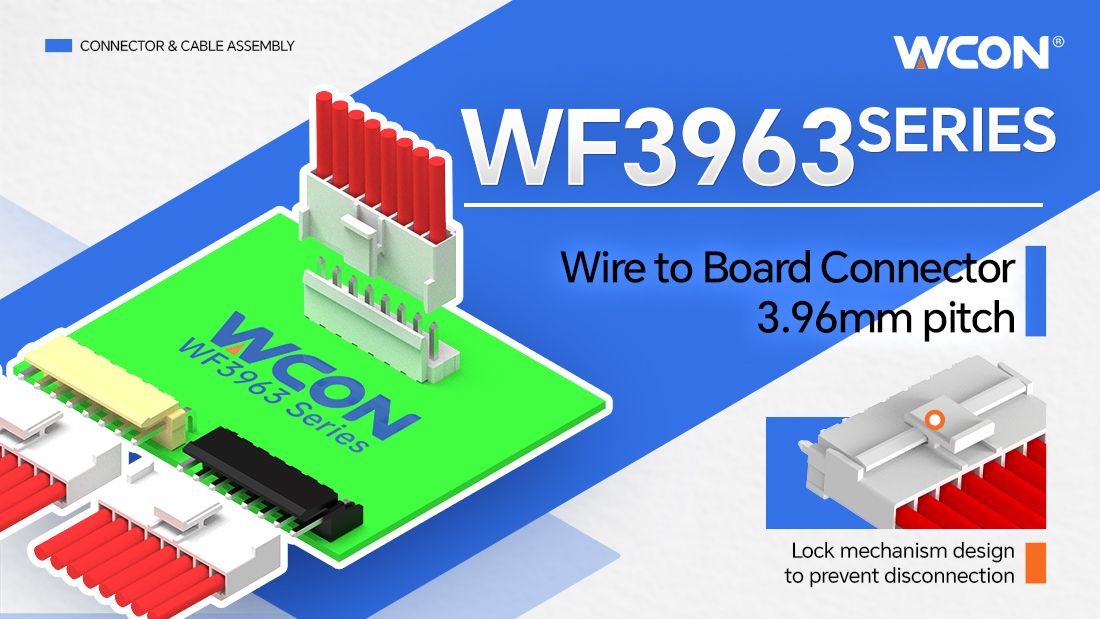

To meet the demand for reliable, space-efficient connections in data networking and consumer electronics, WCON Electronics presents the WF3963 series. These compact wire-to-board connectors feature a 3.96mm wide pitch, ideal for low-to-medium power applications. Offering both vertical and horizontal mounting options with a polarized friction lock, they ensure secure mating and prevent disconnection in demanding environments.

This series is widely adopted in data networking equipment and diverse consumer electronics, delivering stable and compact connectivity solutions.

Product Features

- Latching design for vibration and shock resistance

- Box-type spring-loaded terminals for stable connection

- Compatible wire gauge: 18–24 AWG

Specifications

- Rated Current: 7.0A

- Rated Voltage: 250V AC

- Insulation Resistance: 1000MΩ Min

- Withstanding Voltage: 1000V AC/Min

- Operating Temperature: -40°C to +105°C

Standards

- EIA-364

Data Sheet

Applications

- Data/Networking

- Consumer Electronics
