72025 Series 2.00mm Pitch Wire-to-Board Connectors | A Reliable Choice for Compact Automotive Electronics
With the trend toward high integration in automotive electronics, in-vehicle applications place stringent demands on connectors in terms of environmental tolerance and signal integrity. WCON Electronics’ 72025 series is a 2.00mm-pitch dual-row wire-to-board connector. It is specifically designed for compact applications such as automotive battery management systems (BMS) and advanced driver-assistance systems (ADAS).

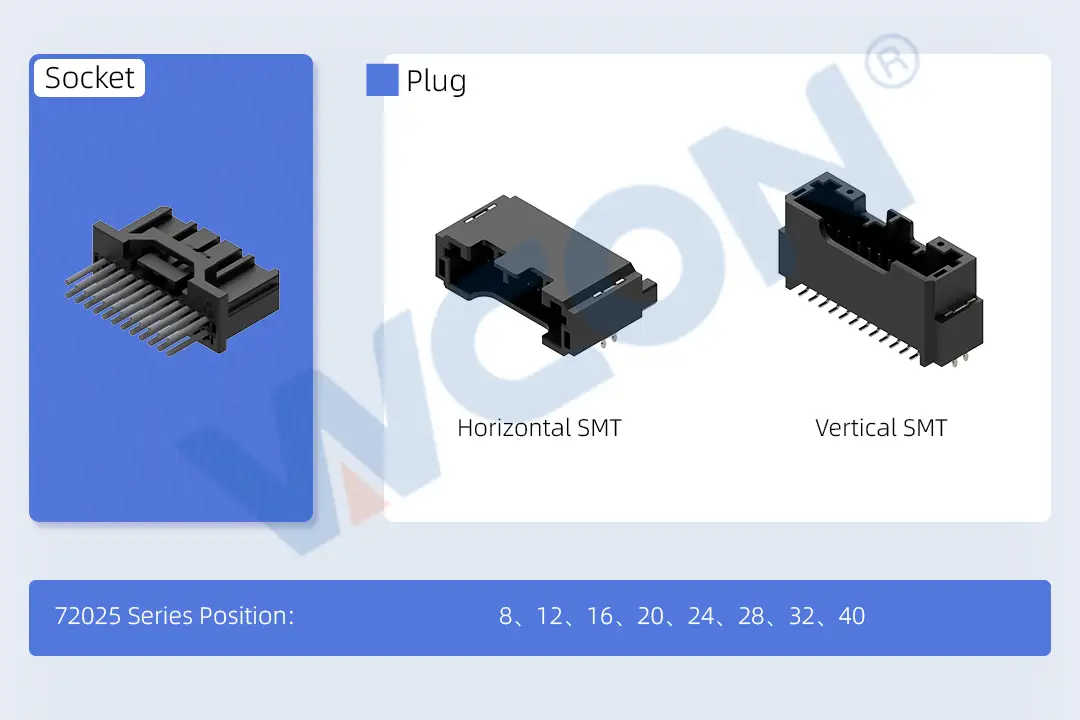

This series features a push-to-lock design that provides clear audible feedback. Additionally, the TPA (Terminal Position Assurance) secondary locking design provides additional retention force, effectively preventing terminal disengagement caused by vibration. The board-side terminals support both right-angle (horizontal) and vertical SMT mounting orientations, flexibly accommodating various space-constrained mating requirements. This series is widely applicable to compact automotive applications, enabling more efficient PCB layout within limited spaces.
| Product Highlights | Performance Specifications |
| - Latch design for enhanced mating retention; | - Rated Current: 3.0A |
| - Horizontal and vertical connection options for flexible mating; | - Rated Voltage: 50V |
| - Dual-row SMT for automated installation; | - Insulation Resistance: 100MΩ Min |
| - TPA secondary locking design for increased retention. | - Withstand Voltage: 1000 V AC/Min |
| - Operating Temperature: -40° C to +125° C | |
| - Applicable Wire Gauge: 22 AWG |
| Standards | Application Areas |
| - USCAR-2 | - Automotive Battery Management Systems |
| - IEC 60512 | - Automotive Advanced Driver Assistance Systems |
